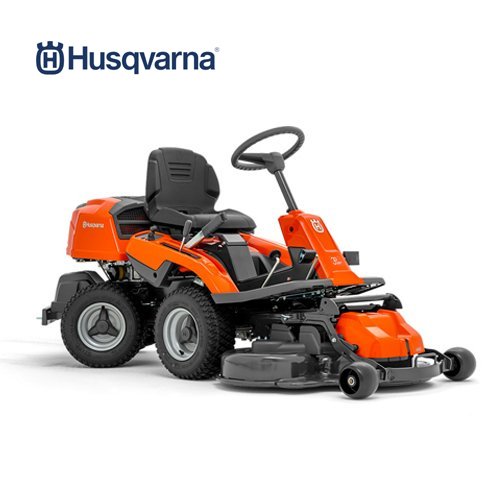

All-Wheel-Drive Rider with optional 94 or 103 cm Combi cutting decks, offering first-class BioClip® and rear ejection cutting. Suitable for home- and landowners who require high efficiency, ease of use, superior manoeuvrability and a truly enjoyable ride. The articulated steering system and front-mounted cutting deck means intuitive operation, excellent mowing accessibility and great overview of your working area. All-Wheel-Drive remarkably increases and secures handling on uneven, wet and slippery areas as well as on slopes, all year round. Pedal-operated hydrostatic transmission, easy-access controls and automatic blade engagement, makes mowing a pleasure. The cutting deck is easily tilted up into service position for easy cleaning after mowing. This Rider can do so much more than cutting your lawn. Thanks to attachments such as snow blade, trailer, moss rake and spreader, it can maintain your garden all year round. More details![]() | Articulated steering The unique articulated steering system allows the rear pair of wheels to swing in underneath the machine. The result is superior manoeuvrability with a minimum turning radius at full lock. |
![]() | All-Wheel-Drive (AWD) All-Wheel-Drive (AWD) ensures traction on uneven, wet and slippery areas and slopes. AWD automatically adjusts the traction on all wheels depending on situation and ground condition. |
![]() | Front-mounted cutting deck Front-mounted cutting deck for excellent accessibility into corners and under bushes, park benches etc. |
![]() | Optional Combi cutting deck This Rider is delivered deckless and can be fitted with 94 or 103 cm Combi cutting decks for efficient BioClip® and rear ejection cutting. |
![]() | Service position Service position on the cutting deck facilitates cleaning and service. |
![]() | External fuel cap Thanks to the external fuel cap, you don't have to open the engine hood when taking on more fuel. The extra wide fuel tank opening makes refueling even easier. |
![]() | Pedal-operated hydrostatic transmission Speed and direction are managed by pedals, which lets you keep both hands on the steering wheel, for optimum driving control. |
![]() | Easy-access controls Controls are easy accessible and designed for optimum user comfort. |
Easy-access controls Controls are easy accessible and designed for optimum user comfort. |
Engine | |
---|---|
Engine manufacturer | Briggs & Stratton |
Engine name | Intek |
Engine type | 4155 |
Net power at preset rpm | 9.6 kW @ 2900 rpm |
Cylinder displacement | 500 cm³ / 30.51 cu.inch |
Cylinders | 1 |
Engine cooling | Air |
Generator | 3 A |
Battery | 12 V 24 Ah |
Fuel Type | Gasoline |
Fuel tank volume | 12 lit / 3.2 gal. |
Engine lubrication type | Pressure |
Oil type | SAE10W30 |
Oil capacity | 1.5 lit / 50.7 fl oz |
Oil filter | Yes |
Drive system | |
Transmission type | Hydrostatic AWD |
Transmission manufacturer | Tuff Torq |
Transmission model | K574 |
Drive method | Pedal-operated |
Speed forward, min-max | 0-9 km/h / 0-5.6 mph |
Speed reverse, min-max | 0-9 km/h / 0-5.6 mph |
Safety limit slopes | 10 ° |
Cutting deck | |
Uncut circle1 | 30 cm / 11.8 inch |
Cutting width, Min-Max | 94-103 cm / 37-40.6 inch |
Optional cutting decks | Combi 94, Combi 103 |
Cutting deck type | Combi |
Cutting deck material | Steel |
Cutting methods | BioClip®/Rear discharge |
Cutting height, min-max | 25 - 75 mm / 1 - 3 inch |
Cutting height steps | 10 pcs |
Blade engagement | Automatic |
Blades | 3 |
Powder-coated cutting deck | Yes |
Other | |
Seat material | Vinyl |
Seat back height | Medium |
Foldable seat | Yes |
Dimensions | |
Tyre dimensions, front | 170/60-8 |
Tyre dimensions, rear | 170/60-8 |
Wheelbase | 88.7 cm / 34.9 " |
Ground clearance | 105 mm / 4.1 inch |
Base machine, length | 190 cm / 74.8 inch |
Base machine, width | 89 cm / 35 inch |
Base machine, height | 107 cm / 42.1 inch |
Weight | 217 kg / 478.4 lbs |
Gross weight towed2 | 110 kg / 242.5 lbs |
Sound and noise data | |
Sound pressure level at operators ear | 85 dB(A) |
Sound power level, measured | 99 dB(A) |
Sound power level, guaranteed (LWA) | 100 dB(A) |
Vibrations | |
Vibration level steering wheel | 2.5 m/s² |
Vibration level seat | 0.7 m/s² |
Logistics | |
Packaging Type | Wood crate |
Packaging size, LxWxH | 2310x1120x980 mm / 90.94x44.09x38.58 inch |
Packaging volume | 2.54 m³ / 89.7 cu.feet |
Gross weight | 281 kg / 619.49 lbs |
Packaging, gross weight | 64 kg / 141.09 lbs |
Packaged weight | 269 kg / 593.03 lbs |
Pallet Size, LxWxH | 2310x1120x155mm / 89.37x40.94x6.1inch |
